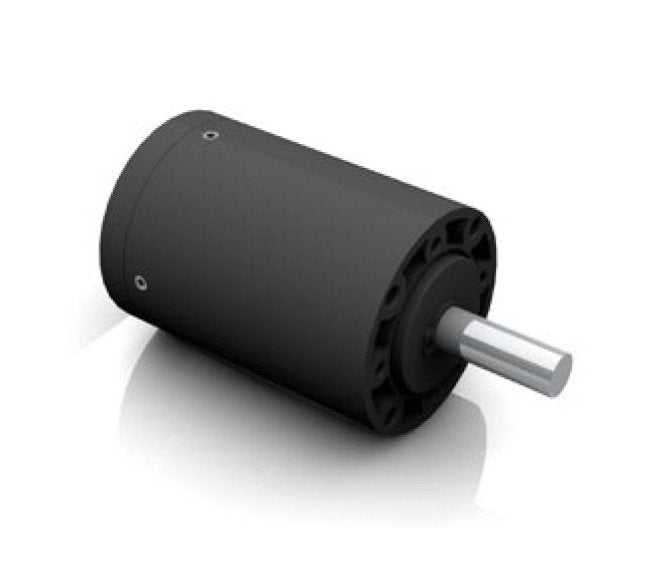

Dunkermotoren PLG Series 312.5 Ratio 3Nm Gearbox
Dunkermotoren PLG Series 312.5 Ratio 3Nm Gearbox
SKU:PLG-49ac3d
High-efficiency gear solution with 312.5 ratio & 3 N·m torque for reliable performance in institutional applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 312.5 Ratio 3Nm Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 312.5 Ratio 3Nm Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 312.5 Ratio 3Nm Gearbox offers exceptional efficiency with a reduction ratio of 312.5 and continuous torque of 3 N·m. With a compact design, double ball bearing output shaft, and high gear efficiency of 73%, this gearbox ensures reliable performance. Its planetary design provides a maintenance-free solution with vibration resistance and a weight of just 0.25 kg. Ideal for institutional and government applications requiring robust, high-torque gearboxes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
312.5
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.25 kg
