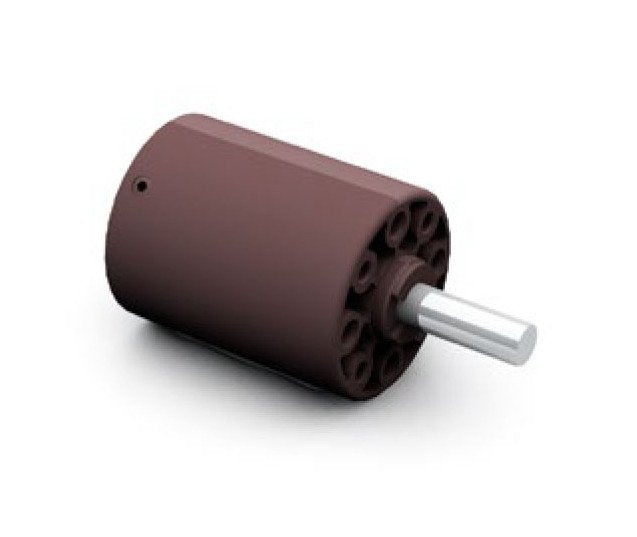

Dunkermotoren PLG Series 36 Gearbox
Dunkermotoren PLG Series 36 Gearbox
SKU:PLG-f9a64d
Experience high efficiency and durability with the Dunkermotoren PLG Series 36 Gearbox, perfect for precision applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 36 Gearbox
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 36 Gearbox
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 36 Gearbox offers exceptional performance and durability, with a reduction ratio of 36 and continuous torque of 0.8 N·m. Crafted with high-grade materials, this gearbox ensures high efficiency and low noise operation. With a compact design and a weight of only 0.08 kg, it is ideal for various applications requiring precision and reliability. This planetary gearbox is maintenance-free and features lifetime lubrication, making it a top choice for industries demanding superior gear efficiency and quality.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0.8 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
36
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.08 kg
