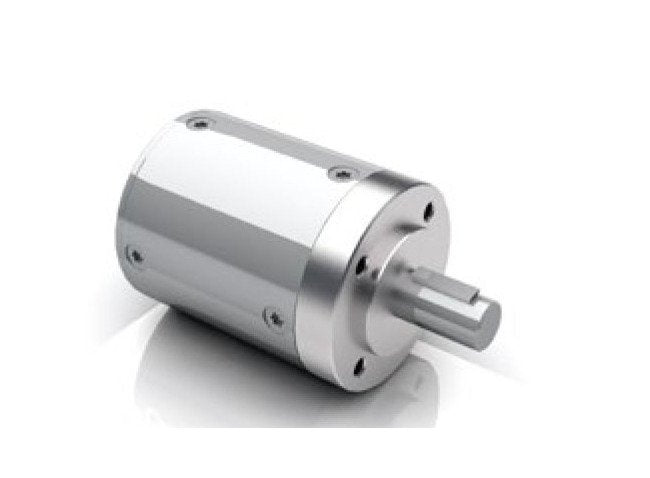

Dunkermotoren PLG Series 36 Gearbox
Dunkermotoren PLG Series 36 Gearbox
SKU:PLG-68c59b
High-efficiency Dunkermotoren gearbox with 81% efficiency, 4 N·m torque, and low noise, ideal for various applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 36 Gearbox
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 36 Gearbox
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 36 Gearbox is a high-efficiency solution with an 81% efficiency rate, providing 4 N·m continuous torque and 5 N·m acceleration torque. This gearbox features low noise, lifetime lubrication, and vibration resistance. With a compact design and excellent gear efficiency, it meets the highest continuous torque capacity standards.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
5 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
4 N·m
Technical Specs Efficiency
81 %
Technical Specs Emergency Stop Torque
18 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
2
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
36
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.7 kg
