Dunkermotoren PLG Series 400 Gearbox
Dunkermotoren PLG Series 400 Gearbox
SKU:PLG-d90361
Dunkermotoren PLG Series 400 Gearbox - High efficiency, 3 N·m torque, maintenance-free, vibration-resistant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 400 Gearbox
$289.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 400 Gearbox
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

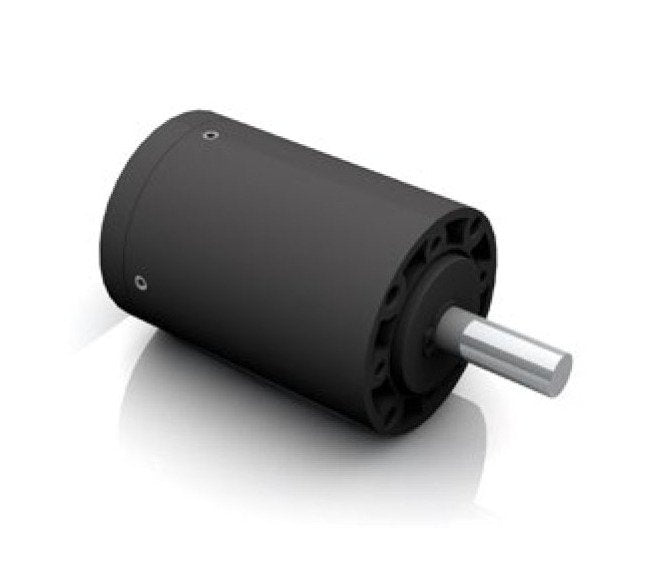

Experience superior performance with the Dunkermotoren PLG Series 400 Gearbox. This planetary gearbox offers a reduction ratio of 400, ensuring high efficiency and a continuous torque of 3 N·m. With a compact design, double ball bearings on the output shaft, and straight toothing across all stages, this gearbox guarantees reliability and longevity in a variety of applications. The gearbox is maintenance-free, vibration-resistant, and boasts a gear efficiency of 73%, making it an ideal choice for demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
400
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.25 kg
