Dunkermotoren PLG Series 50 Gearbox

Name: Dunkermotoren PLG Series 50 Gearbox
Brand: Dunkermotoren
SKU: PLG-1843f1
Price: 289.99 USD
Availability: OutOfStock

SKU:PLG-1843f1

Discover the efficient Dunkermotoren PLG Series 50 Gearbox for reliable continuous torque.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

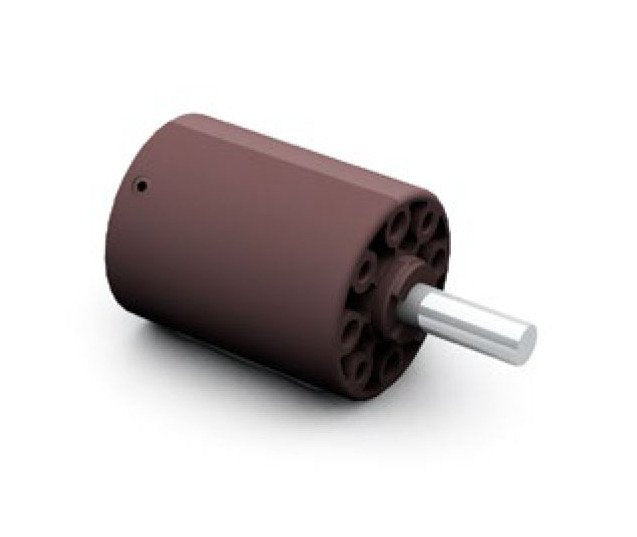

The Dunkermotoren PLG Series 50 Gearbox is a high-efficiency planetary gearbox designed to deliver continuous torque of 0.8 N·m. With an 81% efficiency rating and a compact design, this gearbox offers low noise, lifetime lubrication, and vibration resistance. Ideal for applications requiring reliable performance and durability.

Product Specifications

Additional Information Additional Information

Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.

Features Features

Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance

Note Note

Minimum quantity - 100 pcs

Technical Specs Axial Load

10 N

Technical Specs Brands

Dunkermotoren

Technical Specs Continuous Torque

0.8 NÂ·m

Technical Specs Efficiency

81 %

Technical Specs Note For Axialradial Load

From center of shaft

Technical Specs Number Of Stages

Technical Specs Product Availability

Preferred Series

Technical Specs Protection Class

Ingress Protection (IP50)

Technical Specs Radial Load

24 N

Technical Specs Reduction Ratio

Technical Specs Series

PLG

Technical Specs Weight Of Gearbox

0.08 kg

Dunkermotoren PLG Series 50 Gearbox
