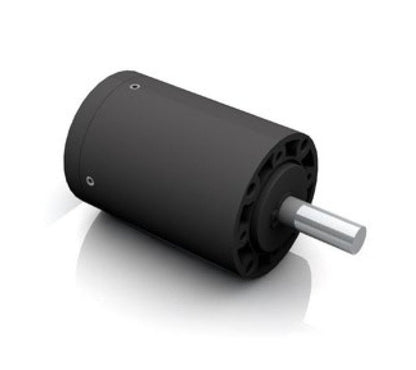

Dunkermotoren PLG Series 50 Planetary Gearbox with 1.3 N·m Continuous Torque
Dunkermotoren PLG Series 50 Planetary Gearbox with 1.3 N·m Continuous Torque
SKU:PLG-b60ab6
Dunkermotoren PLG Series 50 Gearbox: High efficiency, lifetime lubrication, and 1.3 N·m torque. Ideal for various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 50 Planetary Gearbox with 1.3 N·m Continuous Torque
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 50 Planetary Gearbox with 1.3 N·m Continuous Torque
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 50 Planetary Gearbox offers high efficiency, lifetime lubrication, and excellent vibration resistance. With an 81% efficiency rating and a compact design, this gearbox provides a continuous torque of 1.3 N·m. Its lightweight construction and double ball bearing output shaft make it ideal for various applications requiring reliable and durable performance. Suitable for institutional and government procurement, this gearbox meets stringent quality and performance standards.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.3 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
50
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.2 kg
