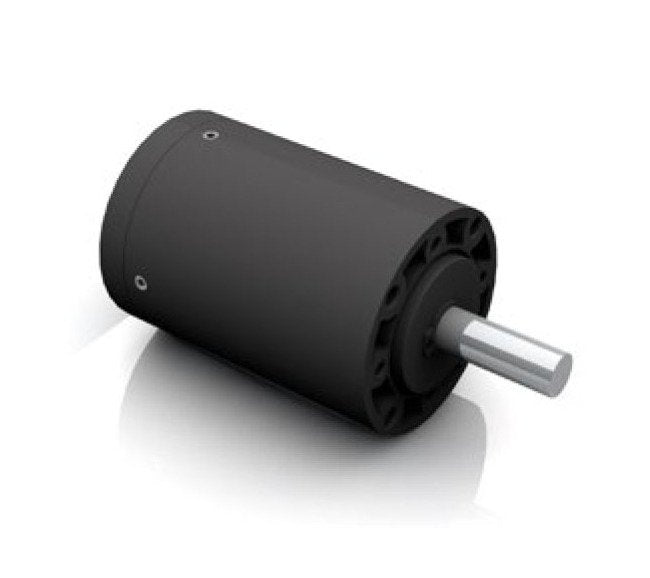

Dunkermotoren PLG Series 512 Gearbox
Dunkermotoren PLG Series 512 Gearbox
SKU:PLG-047434
High-efficiency Dunkermotoren PLG Series 512 Gearbox with 3 N·m torque & 512:1 ratio. Compact, durable, and maintenance-free.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 512 Gearbox
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 512 Gearbox
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 512 Gearbox delivers exceptional performance with a 73% efficiency, 3 N·m continuous torque, and a reduction ratio of 512:1. Featuring a compact design, double ball bearings on the output shaft, and high axial and radial load capacities, this gearbox ensures reliable operation. With a plastic ring gear, lifetime lubrication, and vibration resistance, it offers maintenance-free use and unmatched durability. Ideal for institutional applications requiring high continuous torque and efficiency.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
512
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.25 kg
