Dunkermotoren PLG Series 512 Gearbox
Dunkermotoren PLG Series 512 Gearbox
SKU:PLG-cc7755
High-performance Dunkermotoren PLG Series 512 Gearbox for industrial and government applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 512 Gearbox
$159.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 512 Gearbox
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

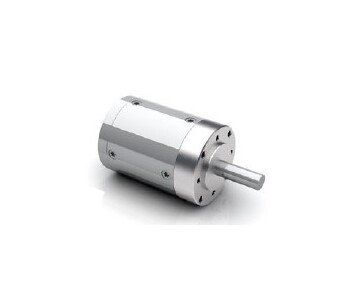

The Dunkermotoren PLG Series 512 Gearbox offers exceptional performance for a wide range of applications. With a high reduction ratio of 512 and up to 14 N·m continuous torque, this compact planetary gearbox is designed to meet the demanding needs of industrial and government sectors. Featuring a durable steel ring gear, lifetime lubrication, and high efficiency of 73%, this gearbox ensures reliability and longevity in operation. Additionally, its compact design, low weight, and excellent gear efficiency make it a preferred choice for institutions seeking high-performance and maintenance-free gear solutions.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
512
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
