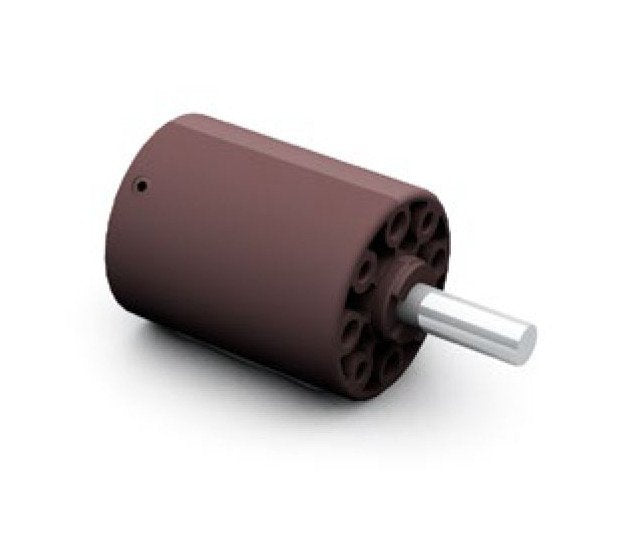

Dunkermotoren PLG Series 6.25 Ratio Gearbox
Dunkermotoren PLG Series 6.25 Ratio Gearbox
SKU:PLG-19307a
High torque Dunkermotoren 6.25 Ratio Gearbox with steel components & IP50 protection for reliable performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 6.25 Ratio Gearbox
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 6.25 Ratio Gearbox
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 6.25 Ratio Gearbox offers unmatched quality and performance for applications requiring high torque capacity and compact design. With a reduction ratio of 6.25, continuous torque of 0.4 N·m, and 90% efficiency, this gearbox ensures reliable operation. Featuring planetary gears, steel components, and dual sleeve bearings, it guarantees durability and low noise levels. With an Ingress Protection (IP50) rating and maintenance-free operation, it meets the highest industry standards for efficiency and reliability.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0.4 N·m
Technical Specs Efficiency
90 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
1
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
6.25
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.05 kg
