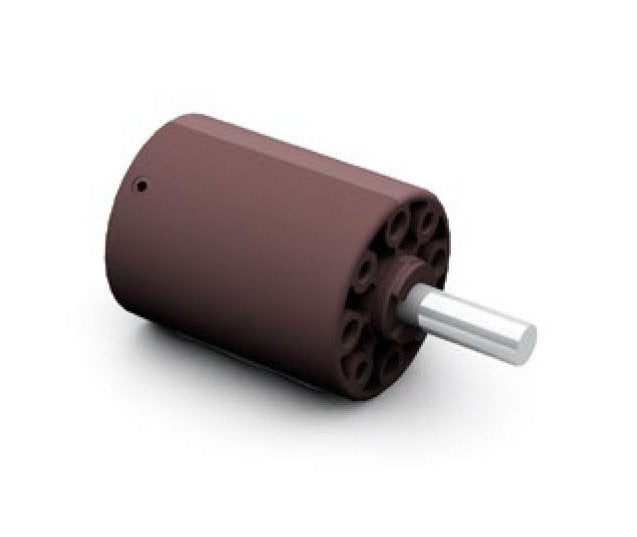

Dunkermotoren PLG Series 8 Gearbox
Dunkermotoren PLG Series 8 Gearbox
SKU:PLG-323c39
High-efficiency Dunkermotoren PLG Series 8 Gearbox with 8:1 reduction ratio and 0.4 N·m continuous torque. Low noise, lifetime lubrication, and compact design for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 8 Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 8 Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 8 Gearbox is a high-efficiency planetary gearbox featuring a reduction ratio of 8 and a continuous torque of 0.4 N·m. With a compact design, steel components, and dual sleeve bearings, it provides a reliable solution for diverse applications. Offering low noise operation, lifetime lubrication, and exceptional vibration resistance, this gearbox ensures optimal performance. With a 90% efficiency rate and the ability to handle axial and radial loads, this gearbox meets the highest continuous torque capacity requirements while maintaining a maintenance-free operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0.4 N·m
Technical Specs Efficiency
90 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
1
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
8
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.05 kg
