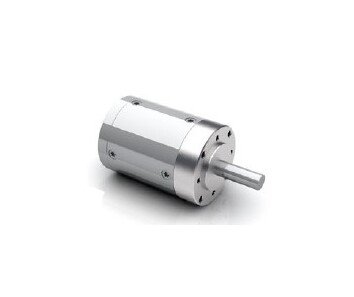

The Dunkermotoren PLG Series 8 Gearbox is a compact and efficient planetary gearbox designed to meet the rigorous demands of industrial applications. With a reduction ratio of 8 and a continuous torque of 3.5 N·m, this gearbox offers high performance and reliability. Features include lifetime lubrication, food-grade lubrication, high torque capacity, and vibration resistance. It is maintenance-free and offers exceptional gear efficiency of typically 97%. Ideal for applications requiring high continuous torque and compact design.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3.5 N·m
Technical Specs Continuous Torque No Metallic Planet Gears
0 to 0.7 N·m
Technical Specs Efficiency
90 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
1
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
8
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.27 kg
