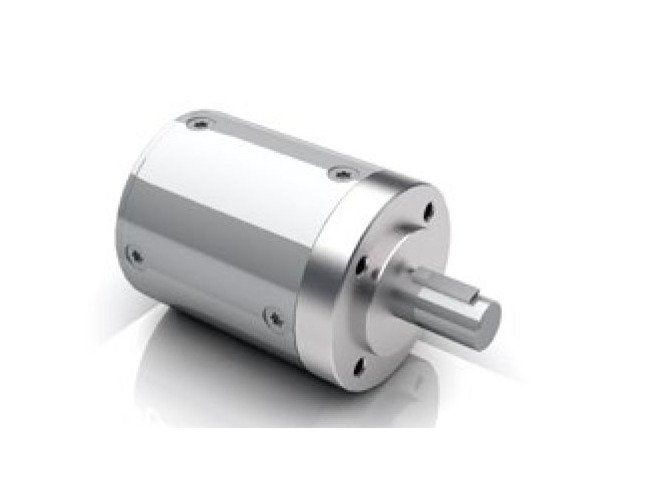

Dunkermotoren PLG Series 8 Gearbox
Dunkermotoren PLG Series 8 Gearbox
SKU:PLG-028411
High-efficiency Dunkermotoren PLG Series 8 Gearbox for demanding institutional applications. Compact, low noise, maintenance-free.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series 8 Gearbox
$159.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series 8 Gearbox
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 8 Gearbox is a high-efficiency solution designed to meet the demanding torque requirements of institutional applications. With a reduction ratio of 8 and a continuous torque of 1.2 N·m, this gearbox offers exceptional performance and durability. Featuring a compact design, low weight, and excellent gear efficiency of 90%, it ensures smooth operation with low noise and vibration resistance. This gearbox is maintenance-free, with a steel ring gear material and IP50 protection class for added durability and longevity.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
2.4 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.2 N·m
Technical Specs Efficiency
90 %
Technical Specs Emergency Stop Torque
3.6 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
1
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
8
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.6 kg
