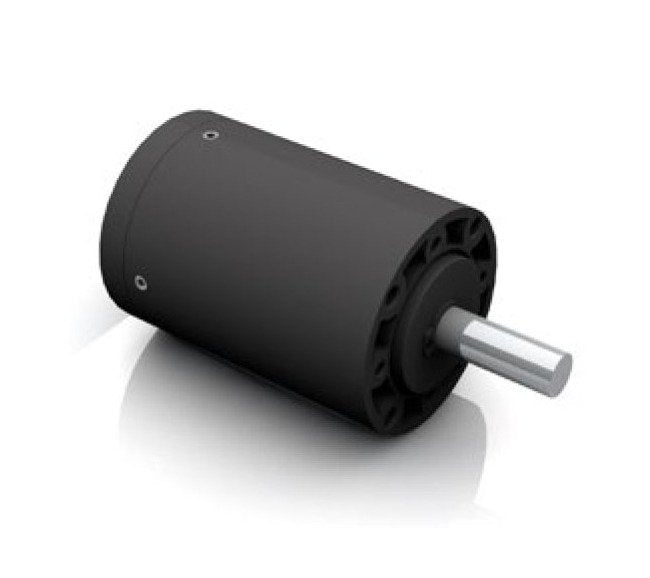

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

PLG-4e61cc

High-efficiency Dunkermotoren PLG Series 16 Ratio Gearbox with 1.3 N·m torque. Maintenance-free & compact design.

$199.99
$199.99
Sale

Initiate Order

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

$199.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

Dunkermotoren PLG Series Gearbox - 16:1 Ratio, 1.3 N·m Torque

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren PLG Series 16 Reduction Ratio Gearbox offers high efficiency and a compact design, with a continuous torque of 1.3 N·m. This planetary gearbox is maintenance-free, featuring lifetime lubrication, vibration resistance, and excellent gear efficiency of typically 97%. With a weight of only 0.2 kg, it can handle axial loads up to 150 N and radial loads up to 230 N. The gearbox is designed with an Ingress Protection (IP50) rating and features a plastic ring gear material.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.3 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
16
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.2 kg
