Dunkermotoren PLG Series Gearbox
Dunkermotoren PLG Series Gearbox
SKU:PLG-5c6e51
Achieve superior efficiency with Dunkermotoren PLG Series Gearbox - high torque, low noise, and durable design for optimal performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

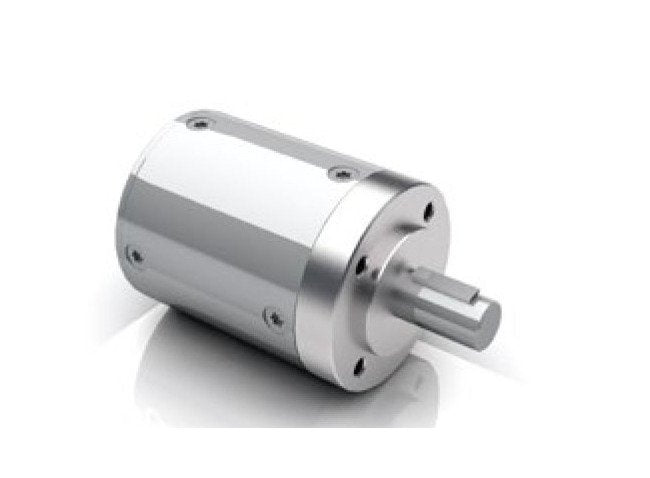

The Dunkermotoren PLG Series Gearbox offers unmatched efficiency with a 69.44 Reduction Ratio and a continuous torque of 6 N·m. Designed with high-quality materials, this gearbox ensures smooth operation, low noise, and vibration resistance. With a compact design and lifetime lubrication, it meets the highest continuous torque capacity standards for institutional and government procurement.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
18 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
6 N·m
Technical Specs Efficiency
73 %
Technical Specs Emergency Stop Torque
40 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
3
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
69.44
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.9 kg
