Dunkermotoren PLG Series Gearbox - 288 Reduction Ratio, 10N·m Torque
Dunkermotoren PLG Series Gearbox - 288 Reduction Ratio, 10N·m Torque
SKU:PLG-982cea
Powerful Dunkermotoren PLG Series Gearbox for high-torque applications. Compact, efficient, and durable for reliable performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series Gearbox - 288 Reduction Ratio, 10N·m Torque
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series Gearbox - 288 Reduction Ratio, 10N·m Torque
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

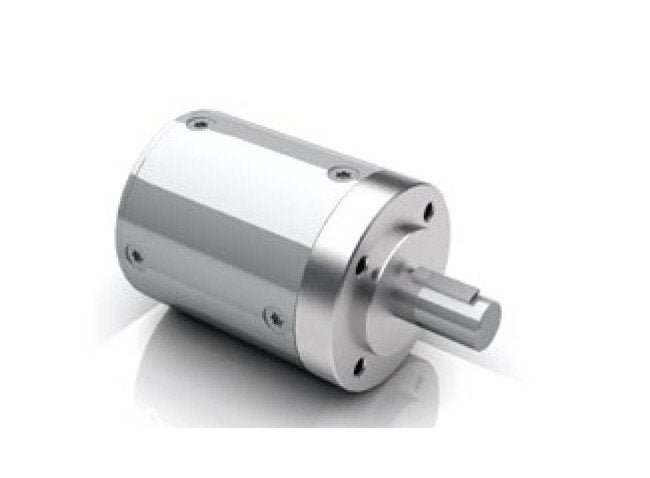

The Dunkermotoren PLG Series 288 Reduction Ratio Gearbox with 10 N·m Continuous Torque is a powerhouse of efficiency and reliability. With a compact design and high continuous torque capacity, this planetary gearbox is ideal for demanding applications. Featuring low noise operation, lifetime lubrication, food-grade lubrication, and vibration resistance, it ensures smooth and durable performance. The gearbox meets institutional procurement standards, making it a top choice for government and industry applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
18 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
10 N·m
Technical Specs Efficiency
73 %
Technical Specs Emergency Stop Torque
48 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
3
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
288
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.9 kg
