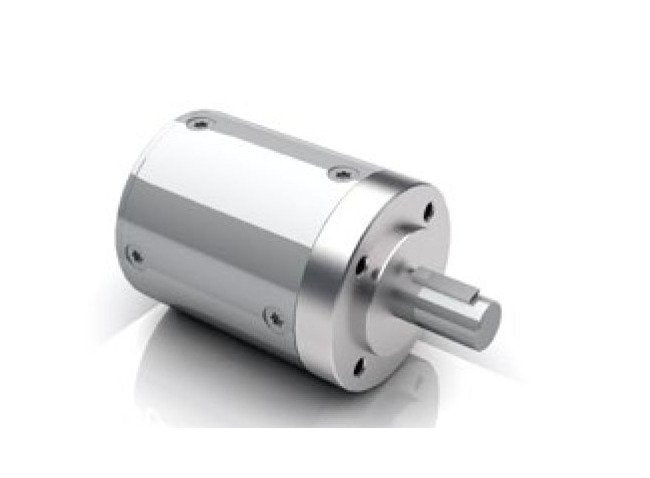

Dunkermotoren PLG Series Gearbox
Dunkermotoren PLG Series Gearbox
SKU:PLG-e0b73d
Dunkermotoren PLG Gearbox: High efficiency, 6.25 reduction ratio, 1.2 N·m torque, compact design, low maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series Gearbox
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series Gearbox
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series Gearbox offers high efficiency and smooth operation, with a 6.25 reduction ratio and 1.2 N·m continuous torque. Featuring a compact design, low weight, and an exceptional gear efficiency of typically 97%, this gearbox is maintenance-free and suitable for a variety of applications. With low noise, lifetime lubrication, food-grade lubrication, vibration resistance, and a planetary configuration, the Dunkermotoren PLG gearbox ensures reliable performance in institutional settings.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperatureSpecial surface availableVibration resistance
Technical Specs Acceleration Torque
2.4 N·m
Technical Specs Axial Load
500 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.2 N·m
Technical Specs Efficiency
90 %
Technical Specs Emergency Stop Torque
3.6 N·m
Technical Specs Note For Acceleration Torque
Acceleration torque for maximum 1 second
Technical Specs Number Of Stages
1
Technical Specs Operating Mode
S1 | S8
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
350 N
Technical Specs Reduction Ratio
6.25
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.6 kg
