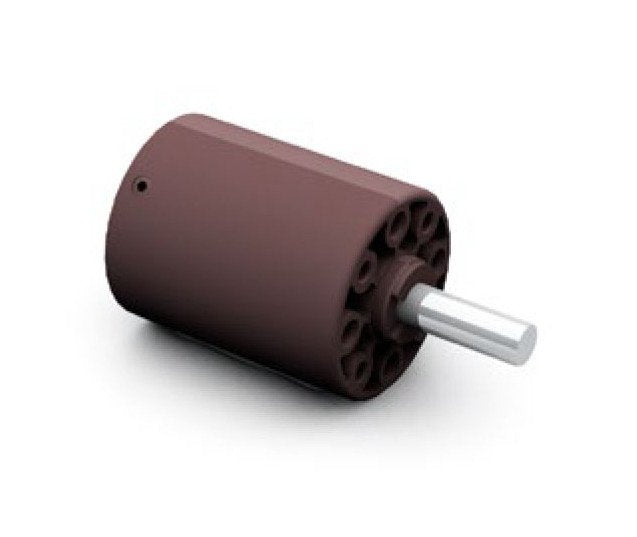

Dunkermotoren PLG Series Gearbox - High Torque & Efficiency
Dunkermotoren PLG Series Gearbox - High Torque & Efficiency
SKU:PLG-b63ccf
High torque & efficiency gearbox with 175.78 reduction ratio, 1.8 N·m torque, and low noise operation.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series Gearbox - High Torque & Efficiency
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series Gearbox - High Torque & Efficiency
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series Gearbox is engineered for superior performance in industrial applications. With a reduction ratio of 175.78 and a continuous torque of 1.8 N·m, this gearbox offers high efficiency and durability. Constructed with ring gear and planetary gears made of premium materials, along with steel planetary carriers and sun wheels, it ensures reliability under demanding conditions. The gearbox features low noise operation, lifetime lubrication, and vibration resistance, making it a preferred choice for institutional buyers seeking quality and longevity.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Low noiseLifetime lubricationFood grade lubricationLow temperature lubricationVibration resistance
Note Note
Minimum quantity - 100 pcs
Technical Specs Axial Load
10 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.80 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
24 N
Technical Specs Reduction Ratio
175.78
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.09 kg
