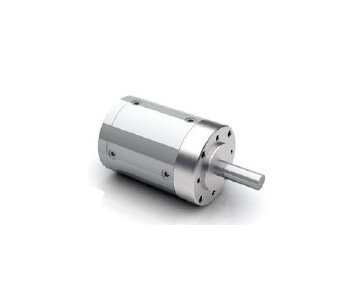

Dunkermotoren PLG Series Planetary Gearbox - 6.25:1 Ratio, 3.5 Nm Torque
Dunkermotoren PLG Series Planetary Gearbox - 6.25:1 Ratio, 3.5 Nm Torque
SKU:PLG-ecd484
Compact, high-torque planetary gearbox with 6.25:1 ratio and 3.5 Nm continuous torque. Maintenance-free with industry-leading efficiency.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren PLG Series Planetary Gearbox - 6.25:1 Ratio, 3.5 Nm Torque
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren PLG Series Planetary Gearbox - 6.25:1 Ratio, 3.5 Nm Torque
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series Planetary Gearbox offers industry-leading continuous torque capacity of 3.5 Nm with a 6.25:1 reduction ratio. Designed with precision, it features lifetime lubrication, food-grade lubrication, high efficiency, and high torque. This maintenance-free gearbox combines compact design and excellent gear efficiency, meeting the highest industry standards.
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
3.5 N·m
Technical Specs Continuous Torque No Metallic Planet Gears
0 to 0.7 N·m
Technical Specs Efficiency
90 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
1
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
6.25
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.27 kg
