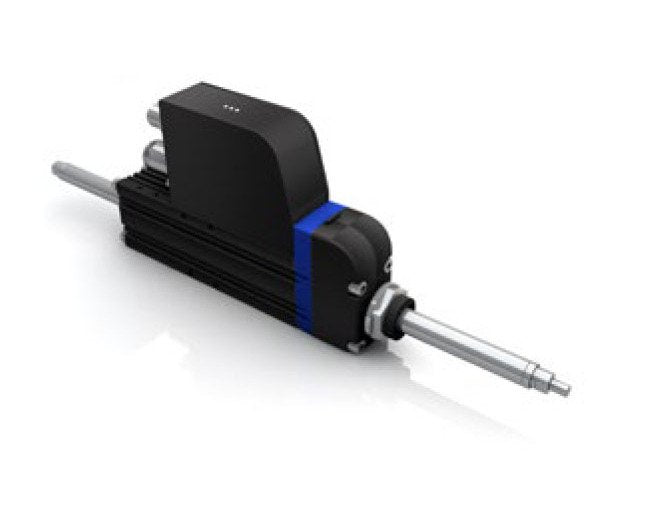

Dunkermotoren SCA 91.9N Peak Force Linear Motor
Dunkermotoren SCA 91.9N Peak Force Linear Motor
SKU:LIN-0b16ba
Experience precision and power with Dunkermotoren's SCA 91.9N Peak Force Linear Motor. Ideal for high-accuracy applications with features like IO mode and CANopen version availability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren SCA 91.9N Peak Force Linear Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SCA 91.9N Peak Force Linear Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SCA Series 91.9N Linear Motor offers precise and programmable performance with a peak force of 91.9N and a peak current of 12A at 25°C ambient temperature. This motor ensures ±6 micron repeatability and ±350 micron absolute accuracy, ideal for applications requiring high precision and reliability. With features like IO mode, CANopen version availability, and maintenance-free operation, this motor caters to industrial and institutional needs for efficient and dynamic motion control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.78 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
19.28 N
Technical Specs Control Voltage
24 V
Technical Specs Feedback Integrated
1 Vss
Technical Specs Maximum Speed Sca
4.7 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
60 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sca
Based on a moving thrust rod with triangular move over maximum stroke, no playload.
Technical Specs Note For Peak Acceleration Sca
Based on a moving thrust rod with 27 mm stroke and no playload.
Technical Specs Peak Acceleration Sca
422 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
91.9 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
6 µm
