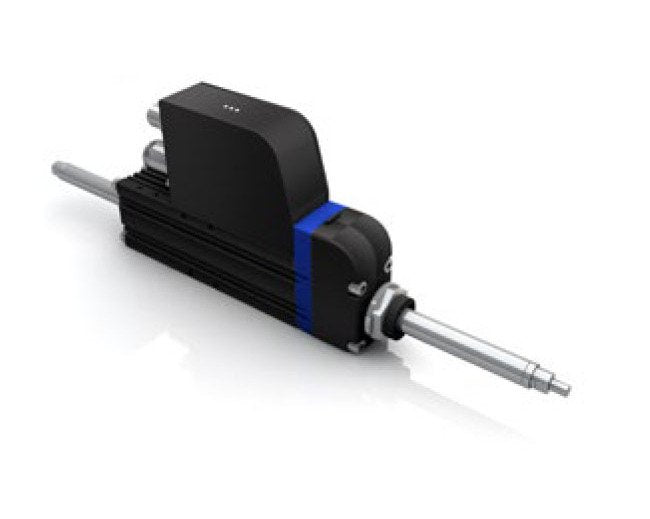

The Dunkermotoren SCA Series Linear Motor offers precise positioning and high dynamic performance ideal for industrial automation applications. With a peak force of 46.0N and peak current of 12A at 25°C ambient temperature, this motor ensures reliable operation. It features integrated CANopen version, IP65 protection class, and maintenance-free design, making it a durable and efficient choice for continuous industrial use. The motor's advanced features include IO mode, force mode, vibration resistance, and programmable capabilities, meeting the demands of both consumer and institutional buyers.
Product Specifications
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.11 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
6.02 N
Technical Specs Control Voltage
24 V
Technical Specs Feedback Integrated
1 Vss
Technical Specs Maximum Speed Sca
5.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
60 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sca
Based on a moving thrust rod with triangular move over maximum stroke, no playload.
Technical Specs Note For Peak Acceleration Sca
Based on a moving thrust rod with 27 mm stroke and no playload.
Technical Specs Peak Acceleration Sca
407 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
46.0 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
6 µm
