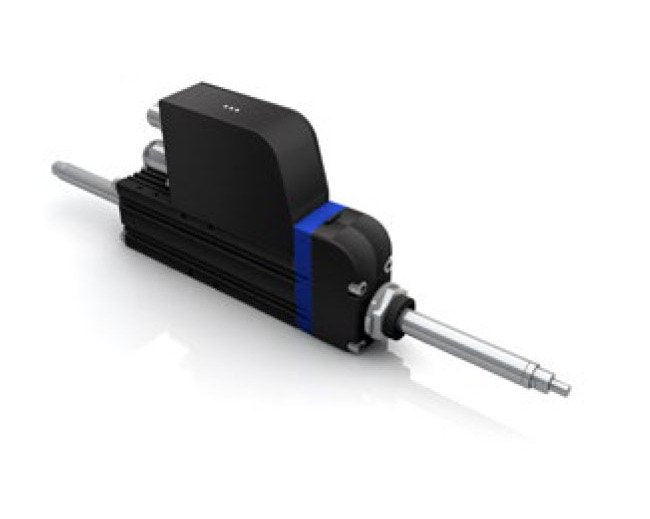

Dunkermotoren SCA Linear Motor 53.0N/12A
Dunkermotoren SCA Linear Motor 53.0N/12A
SKU:LIN-66483f
High-performance Dunkermotoren Linear Motor for precise and reliable positioning in institutional applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dunkermotoren SCA Linear Motor 53.0N/12A
$499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SCA Linear Motor 53.0N/12A
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SCA Series 53.0N Peak Force and 12A Peak Current Linear Motor is a high-performance solution featuring integrated programmable amplification for precise and repeatable positioning. With advanced features like IO mode, CANopen version availability, and low maintenance requirements, this motor ensures efficient and reliable operation. It complies with relevant industry standards, making it ideal for institutional and government procurement needs.
Product Specifications
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.73 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
10.83 N
Technical Specs Control Voltage
24 V
Technical Specs Feedback Integrated
1 Vss
Technical Specs Maximum Speed Sca
5.6 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
60 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sca
Based on a moving thrust rod with triangular move over maximum stroke, no playload.
Technical Specs Note For Peak Acceleration Sca
Based on a moving thrust rod with 27 mm stroke and no playload.
Technical Specs Peak Acceleration Sca
359 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
53.0 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
6 µm
