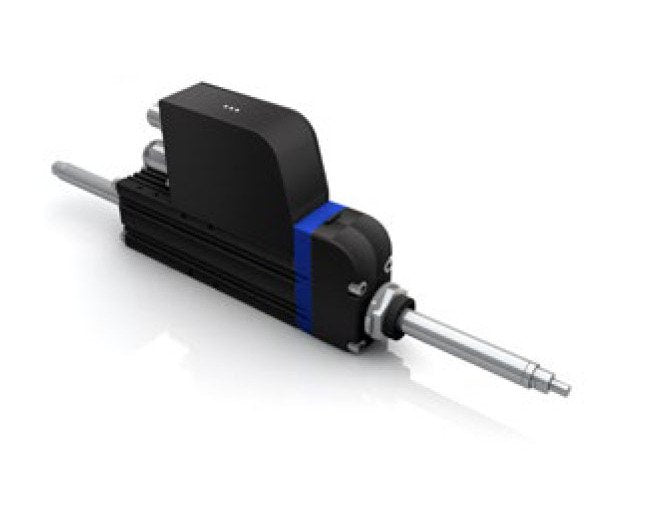

Dunkermotoren SCA Series Linear Motor
Dunkermotoren SCA Series Linear Motor
SKU:LIN-c1e5b0
Experience precision and reliability with Dunkermotoren SCA Series Linear Motor, ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren SCA Series Linear Motor
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SCA Series Linear Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SCA Series Linear Motor is a high-performance solution designed for precise positioning in industrial applications. With a peak force of 68.9 N and peak current of 12 A at 25°C ambient temperature, this motor ensures exceptional accuracy and reliability. Equipped with an integrated programmable amplifier and offering ±6 µm repeatability and ±350 µm absolute accuracy, it provides advanced control capabilities. Additionally, it features protection class IP67, making it suitable for various operating environments. This motor is maintenance-free, low-noise, and offers high dynamic performance, catering to the demanding needs of institutional and government buyers.
Product Specifications
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.87 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
15.18 N
Technical Specs Control Voltage
24 V
Technical Specs Feedback Integrated
1 Vss
Technical Specs Maximum Speed Sca
5.4 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
60 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sca
Based on a moving thrust rod with triangular move over maximum stroke, no playload.
Technical Specs Note For Peak Acceleration Sca
Based on a moving thrust rod with 27 mm stroke and no playload.
Technical Specs Peak Acceleration Sca
378 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
68.9 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
6 µm
