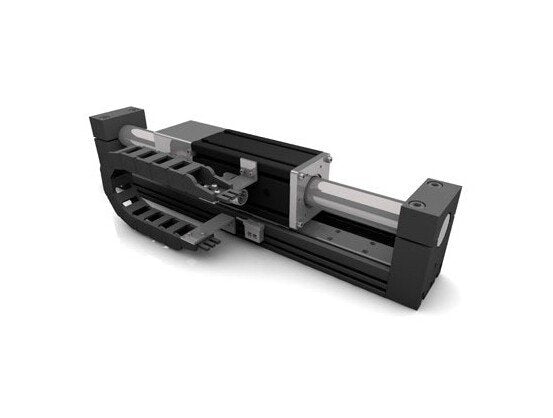

Dunkermotoren SL 38 M Series Linear Motor
Dunkermotoren SL 38 M Series Linear Motor
SKU:LIN-c6e91d
Powerful Dunkermotoren SL 38 M Series Linear Motor for dynamic and precise operations, ideal for various industries.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dunkermotoren SL 38 M Series Linear Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL 38 M Series Linear Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL 38 M Series Linear Motor offers exceptional performance with a peak force of 2285 N and peak current of 26 A at 25°C. Designed for highly dynamic applications, this linear motor integrates a linear encoder for precise positioning. With a maximum speed of 2.7 m/s at 100°C, this motor ensures efficient operations. Additionally, it features low noise, high force, and is maintenance-free. Compliant with IP65 standards, it is suitable for various industries including food-grade applications.
Product Specifications
Additional Information Additional Information
Standard version with connection for water coolingCan be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
5.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
87.9 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
2.7 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
211 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 4xx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
26 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
2285 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
