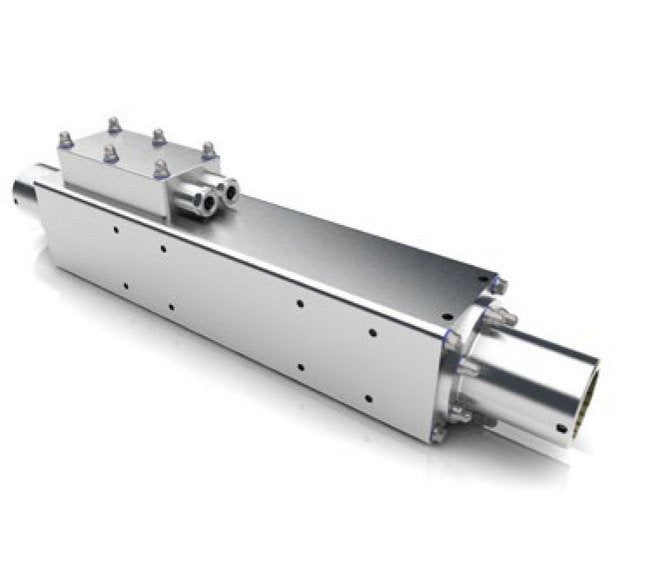

Dunkermotoren SL 38 STL Linear Motor
Dunkermotoren SL 38 STL Linear Motor
SKU:LIN-39dd8a
Powerful and precise Dunkermotoren SL 38 STL Linear Motor for industrial applications. Stainless steel construction, high force, and dynamic performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dunkermotoren SL 38 STL Linear Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL 38 STL Linear Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL 38 STL Series Linear Motor is a high-performance 3-phase linear motor designed for precision and reliability. With a Peak Force of 1581 N, Peak Current of 30 A, and Nominal Voltage of 325 V, this motor delivers exceptional power for industrial applications. Integrated with a linear encoder, it offers precise positioning, low noise operation, and high dynamic performance. Built with stainless steel components, it ensures durability and longevity, making it ideal for demanding industrial environments. This linear motor is compatible with various commercially available servo controllers from reputable brands like Schneider and Siemens, providing versatility and ease of integration.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
430 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
3.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
52.7 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
4.7 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
1.9 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
100.1 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
1581 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
