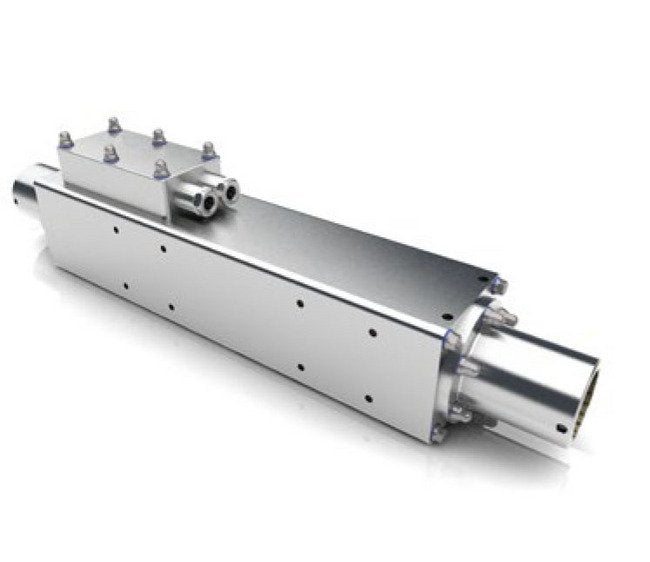

Dunkermotoren SL 38 STL Series Linear Motor
Dunkermotoren SL 38 STL Series Linear Motor
SKU:LIN-63b1f1
Experience unmatched performance with the Dunkermotoren SL 38 STL Linear Motor for precise and dynamic applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dunkermotoren SL 38 STL Series Linear Motor
$2,499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL 38 STL Series Linear Motor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL 38 STL Series Linear Motor is a cutting-edge 3-phase motor designed for precision and high performance. With a peak force of 2637 N and a peak current of 30 A at 25°C ambient temperature, this linear motor offers exceptional power for various industrial applications. It features a maintenance-free sleeve bearing system and integrated linear encoder for accurate positioning. The motor is water-cooling compatible and boasts industry-leading specifications for dynamic force and speed.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
430 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
5.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
87.9 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
5.2 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
1.9 A
Technical Specs Nominal Direct Current Dc Voltage
560 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
167.0 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
2637 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
