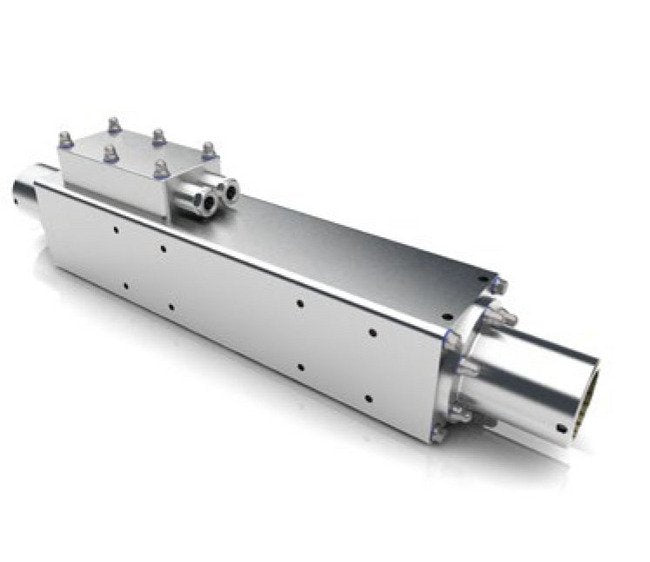

Dunkermotoren SL 38 STL Series Linear Motor
Dunkermotoren SL 38 STL Series Linear Motor
SKU:LIN-6b4e53
Experience precision and power with the Dunkermotoren SL 38 Linear Motor, ideal for high-performance applications.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Dunkermotoren SL 38 STL Series Linear Motor
$2,399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL 38 STL Series Linear Motor
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL 38 STL Series 2214N Peak Force Linear Motor is a highly dynamic 3-phase linear motor designed for precision applications. With a peak power of 3690W and continuous power of 430W, this motor delivers exceptional performance. It features an integrated linear encoder, precise positioning, maintenance-free operation, low noise, and high force output. Compliant with IP65 protection class and industry standards like CE and UL, it ensures reliability and quality in industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
430 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
7.2 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
123 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
2.9 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
1.9 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
233.7 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
18 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
2214 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
