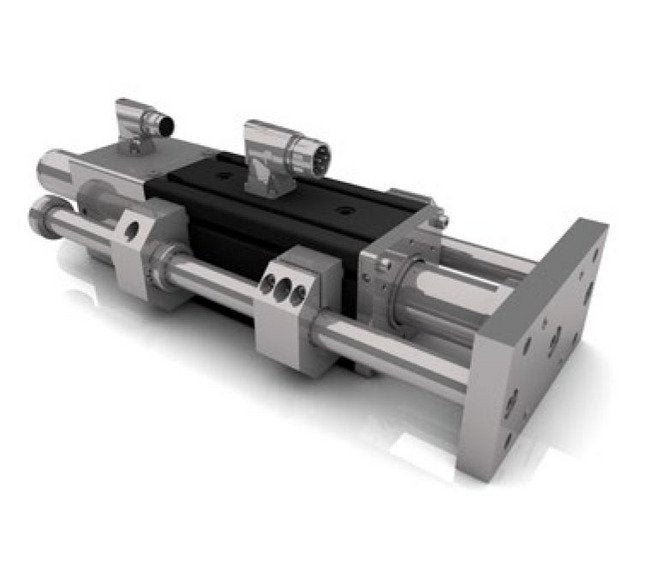

Dunkermotoren SL 38 TG Series Linear Motor
Dunkermotoren SL 38 TG Series Linear Motor
SKU:LIN-91d9b0
Highly dynamic Dunkermotoren SL 38 TG Series Linear Motor for precise high-force applications. Maintenance-free with low noise and vibration resistance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dunkermotoren SL 38 TG Series Linear Motor
$2,499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL 38 TG Series Linear Motor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL 38 TG Series Linear Motor is a robust and highly dynamic solution designed for precise positioning and high force applications. With a peak force of 1581N and 30A peak current at 25°C, this linear motor offers exceptional performance. Features like force mode operation, maintenance-free design, low noise, and high vibration resistance make it an ideal choice for various industrial applications. Compliant with IP65 protection class and industry standards like CE and UL, this linear motor guarantees reliability and efficiency in demanding environments.
Product Specifications
Additional Information Additional Information
Can be operated with commercially servo controllers, settings available (Schneider, Siemens, etc.)
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial surface availableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
1 Vss | Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
3.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
52.7 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
3.8 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
126 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving magnetic rod with 4xx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
1581 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
