Dunkermotoren SL Series Linear Motor
Dunkermotoren SL Series Linear Motor
SKU:LIN-c0e3d5
Experience unparalleled precision and power with Dunkermotoren's SL Series Linear Motor, ideal for dynamic industrial applications.
Regular price
$1,499.00
Regular price
Sale price
$1,499.00
Unit price
per
Initiate Order
Dunkermotoren SL Series Linear Motor
$1,499.00
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL Series Linear Motor
$1,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

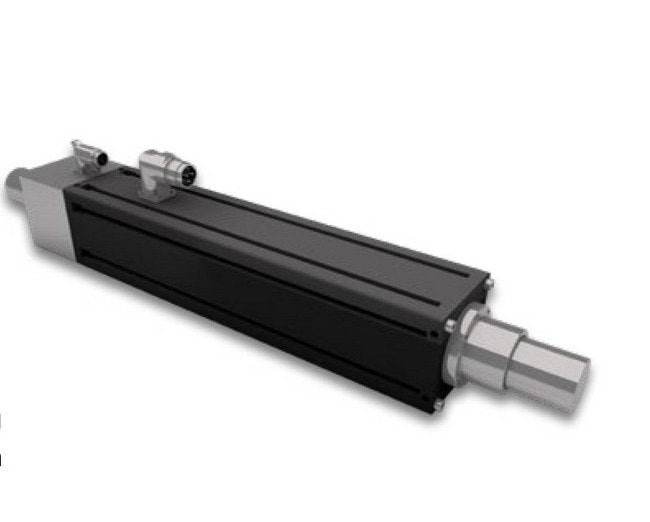

The Dunkermotoren SL Series 2637 N Peak Force Linear Motor offers exceptional dynamic performance with a peak current of 30A and 560V nominal DC voltage. Integrated with a linear encoder, this motor ensures precise positioning and maintenance-free operation. With features like high force, low noise, and vibration resistance, it caters to diverse industrial applications while meeting industry standards such as CE and UL certifications.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial SurfaceVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
5.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
87.9 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
52 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
560 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
211 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving motor housing with 2xxx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
2637 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
