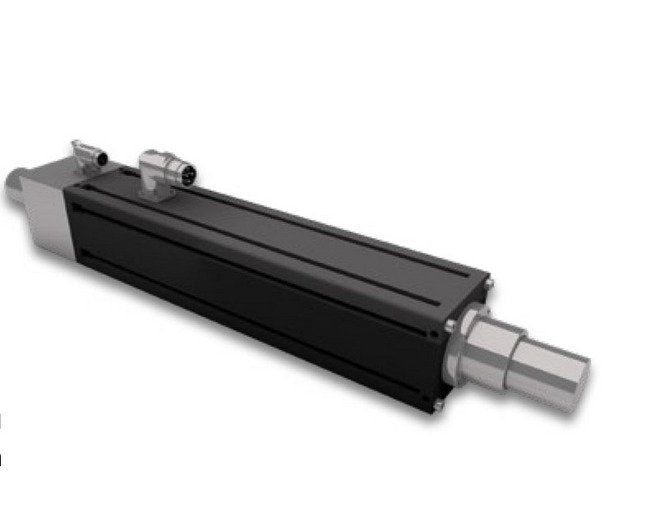

Dunkermotoren SL Series Linear Motor 1581N Peak Force
Dunkermotoren SL Series Linear Motor 1581N Peak Force
SKU:LIN-7fa759
High-performance linear motor for dynamic industrial applications, compliant with CE & IP65 standards
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Dunkermotoren SL Series Linear Motor 1581N Peak Force
$2,899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SL Series Linear Motor 1581N Peak Force
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SL Series 1581N Peak Force Linear Motor is a high-performance 3-phase motor with integrated linear encoder and maintenance-free sleeve bearing system. With peak power of 3690W and precise positioning, this motor offers high force, low noise operation, and vibration resistance. Designed for industrial applications, it complies with European Conformity (CE), Ingress Protection (IP65), and more.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial SurfaceVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
3.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
52.7 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
8.3 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
560 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
126 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving motor housing with 2xxx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
1581 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
