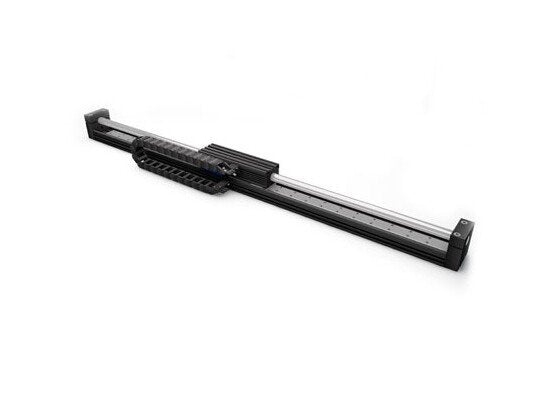

The Dunkermotoren SM Series 624 Linear Motor offers exceptional peak force of 624 N and peak current of 20 A at 25°C ambient temperature. Ideal for high-speed positioning up to 8.5 m/s, this linear motor features a ball-guided linear rail, integrated position sensor, and easy 'drop-in' installation. With precise positioning, low noise, and vibration resistance, it ensures optimal performance in industrial automation applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches / high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.70 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
75.1 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
5.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
235 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
624 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
