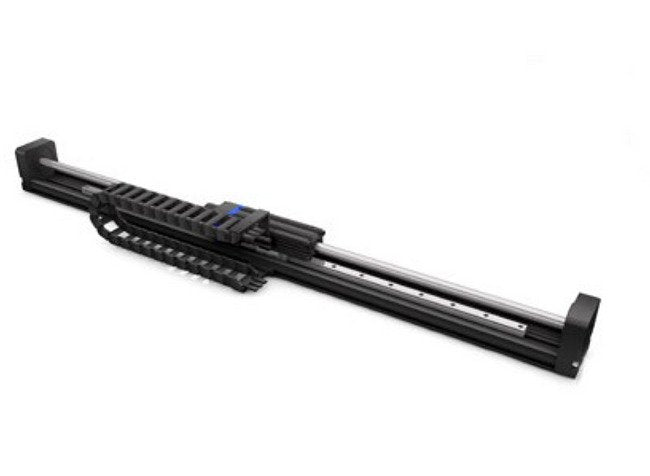

The Dunkermotoren SM Series Linear Motor is a high-performance servoTube module designed for precise positioning and high-speed applications, offering a peak force of 68.9 N and a peak current of 12 A at 25°C ambient temperature. This linear motor features a ball-guided linear rail, integrated position sensor, and easy 'drop-in' installation for seamless integration. With industry-leading specifications such as 110 m/s² peak acceleration and 0.01 mm repeatability, this motor ensures exceptional force mode operation, low noise, and vibration resistance, making it an ideal choice for industrial automation and motion control applications.
Product Specifications
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.87 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
15.18 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
7.9 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Maximum Working Direct Current Dc Volta
When operating at 24 V or 48 V reduces the maximum speed.
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
110 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
68.9 N
Technical Specs Peak Power
92 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
