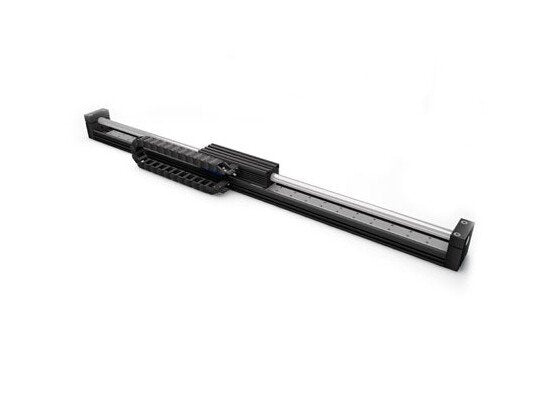

The Dunkermotoren SM Series Linear Motor is a high-performance servoTube module designed for precise and fast positioning up to 8.5 m/s. With a peak force of 780N and peak current of 20A at 25°C ambient temperature, it provides reliable continuous power of 90W. This linear motor features ball guided linear rail, integrated position sensor, and easy 'drop-in' installation, making it ideal for high-speed industrial applications. It offers low noise operation, vibration resistance, and exceptional repeatability, ensuring efficient and accurate linear motion control. Compliant with European Conformity (CE) standards, this linear motor meets the rigorous requirements of institutional procurement.
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches / high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.63 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
90.0 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
4.5 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
255 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
780 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
