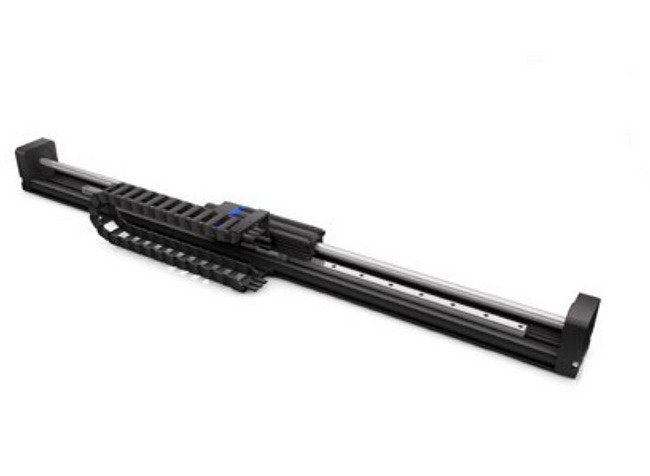

Dunkermotoren SM Series Linear Motor
Dunkermotoren SM Series Linear Motor
SKU:LIN-47ffeb
Experience precision and speed with Dunkermotoren's high-performance SM Series Linear Motor, designed for industrial precision applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren SM Series Linear Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren SM Series Linear Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren SM Series Linear Motor is a high-speed positioning solution offering a peak force of 46.0 N and peak current of 12 A at 25°C ambient temperature. With precise positioning, low noise operation, and exceptional vibration resistance, this linear motor ensures optimal performance in industrial applications. It features an integrated position sensor, easy installation, and comes with a 3m cable set and drag chain for added convenience. Compliance with European Conformity (CE) standards ensures reliability and quality in every use.
Product Specifications
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.35 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.11 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
6.02 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
10.8 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Maximum Working Direct Current Dc Volta
When operating at 24 V or 48 V reduces the maximum speed.
Technical Specs Note For Peak Acceleration
No playload.
Technical Specs Peak Acceleration
156 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
46.0 N
Technical Specs Peak Power
92 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.01 mm
