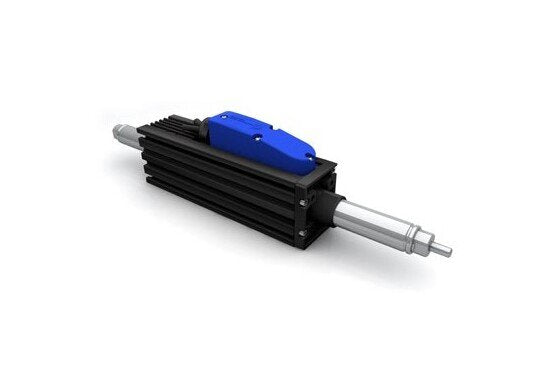

Dunkermotoren ST Series 624 Linear Motor
Dunkermotoren ST Series 624 Linear Motor
SKU:LIN-487351
Experience precision and power with Dunkermotoren's ST Series 624 Linear Motor. High performance for precision applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren ST Series 624 Linear Motor
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren ST Series 624 Linear Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren ST Series 624 Linear Motor is a high-performance motor designed for precision applications. With a peak force of 624N and peak current of 20A at 25°C ambient temperature, this motor delivers exceptional performance. It features integrated sin/cos positioning sensors for ±12 micron repeatability, IP67 protection, and options for actuator (STA) and component (STB) versions. Maintenance-free and low-noise operation make it ideal for various industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.70 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
75.1 N
Technical Specs Feedback Integrated
1 µm
Technical Specs Force Constant Sine Commutation
44.1 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
4.7 m/s
Technical Specs Maximum Speed Stb
5.4 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 27 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
542 m/s²
Technical Specs Peak Acceleration Stb
235 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
624 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
12 µm
