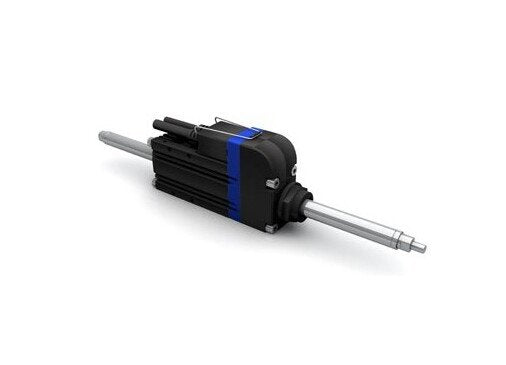

Dunkermotoren ST Series Linear Motor
Dunkermotoren ST Series Linear Motor
SKU:LIN-7de515
Achieve precision and reliability with the Dunkermotoren ST Series Linear Motor, featuring 91.9 N peak force and 12 A peak current.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dunkermotoren ST Series Linear Motor
$1,299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren ST Series Linear Motor
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren ST Series Linear Motor is a cutting-edge solution offering a peak force of 91.9 N and peak current of 12 A at 25°C ambient temperature. This linear motor features an integrated high-resolution sin/cos positioning sensor for precise positioning with ±6 µm repeatability. With industry-leading features such as force mode operation, maintenance-free design, low noise, high dynamic performance, and food-grade materials, this linear motor is ideal for applications requiring high precision and reliability. Additionally, its IP67 protection class ensures durability in demanding environments.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.78 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
19.28 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
10.83 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
4.7 m/s
Technical Specs Maximum Speed Stb
5.0 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 14 mm stroke and no playload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
422 m/s²
Technical Specs Peak Acceleration Stb
120 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
91.9 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
6 µm
