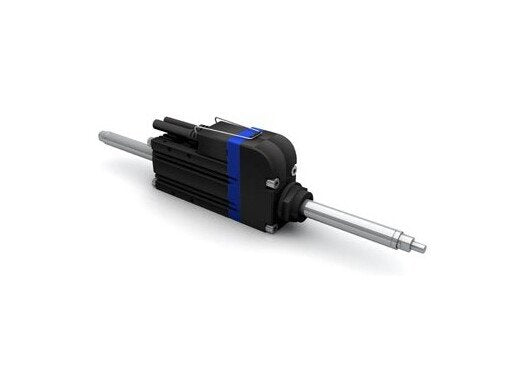

The Dunkermotoren ST Series 53.0N Peak Force Linear Motor offers precise positioning with integrated sin/cos sensor for ±6µm repeatability. With a high IP67 protection rating, this motor ensures maintenance-free operation with low noise and high dynamic performance. Ideal for applications requiring food-grade standards and vibration resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
19 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.73 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
10.83 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
6.26 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
5.6 m/s
Technical Specs Maximum Speed Stb
7.7 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
75 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 14 mm stroke and no playload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
359 m/s²
Technical Specs Peak Acceleration Stb
119 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
12 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
53.0 N
Technical Specs Peak Power
91 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
6 µm
