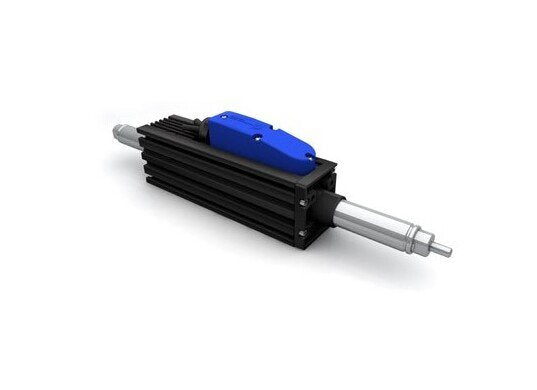

Dunkermotoren ST Series Linear Motor
Dunkermotoren ST Series Linear Motor
SKU:LIN-bc56df
Experience precision and reliability with Dunkermotoren ST Series Linear Motor. Ideal for high-performance applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren ST Series Linear Motor
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren ST Series Linear Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren ST Series 780N Peak Force and 20A Peak Current Linear Motor offers precise positioning with high resolution sin/cos sensor technology. With integrated IP67 protection and optional brake feature, this motor ensures reliable operation in demanding environments. Maintenance-free and low-noise, it meets CE standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
90 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.63 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
90.0 N
Technical Specs Feedback Integrated
1 µm
Technical Specs Force Constant Sine Commutation
55.2 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
4.2 m/s
Technical Specs Maximum Speed Stb
4.6 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 27 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
586 m/s²
Technical Specs Peak Acceleration Stb
256 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
780 N
Technical Specs Peak Power
780 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
12 µm
