Dunkermotoren XM Series 1488 N Linear Motor
Dunkermotoren XM Series 1488 N Linear Motor
SKU:LIN-27f65a
Achieve precision and speed with Dunkermotoren's XM Series 1488 N Linear Motor, ideal for high-speed positioning applications. Compliance: CE Standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dunkermotoren XM Series 1488 N Linear Motor
$1,299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren XM Series 1488 N Linear Motor
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

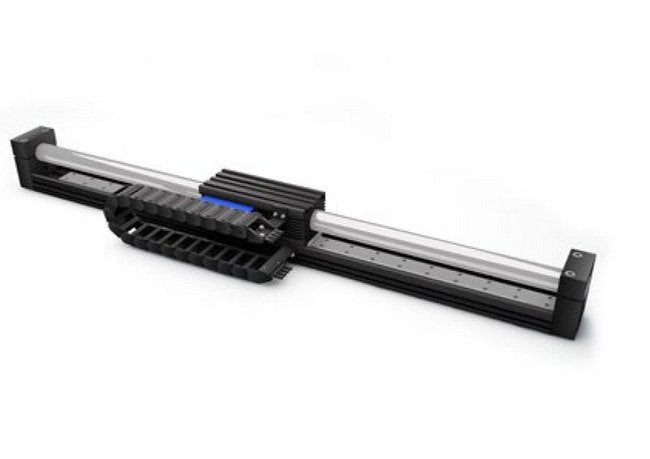

Experience precision and high-speed positioning with the Dunkermotoren XM Series 1488 N Linear Motor. This linear motor module features a peak force of 1488 N and a peak current of 20 A at 25°C ambient temperature, making it ideal for applications requiring precise movement control. Equipped with a tubular linear motor, ball-guided linear rail, and integrated position sensor, this motor ensures accurate and efficient operation. With features like force mode, precise positioning, low noise, and vibration resistance, the XM Series offers reliability and performance. It complies with European Conformity (CE) standards, meeting the quality requirements for institutional and government procurement.
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches | high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.4 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
2.02 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
212.7 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
3.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration Sta
No playload.
Technical Specs Peak Acceleration Sta
294 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
1488 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.02 mm
