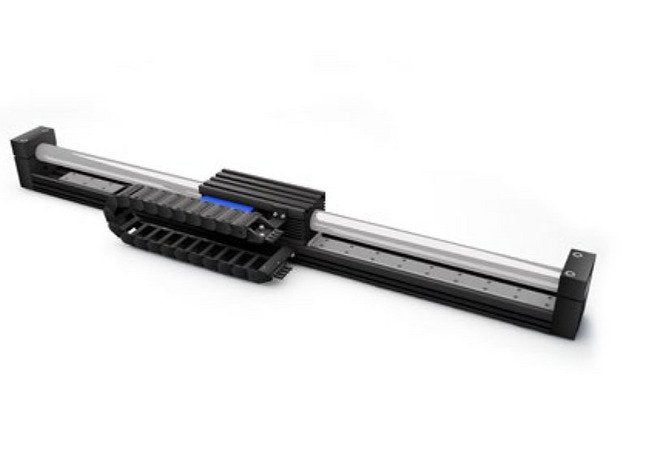

The Dunkermotoren XM Series 1860 Newton Peak Force and 20 Ampere Peak Current Linear Motor is a high-performance servo module designed for precise positioning in industrial applications. With a peak force of 1860 N and peak current of 20 A at 25°C ambient temperature, this linear motor offers exceptional speed and accuracy. It features a ball-guided linear rail, integrated position sensor, and easy installation. Ideal for high-speed positioning tasks with repeatability of ±0.02 mm, this linear motor ensures low noise operation and vibration resistance, making it a reliable choice for advanced automation systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches | high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.4 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.94 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
255.0 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
2.6 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration Sta
No playload.
Technical Specs Peak Acceleration Sta
307 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
1860 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.02 mm
