Dunkermotoren XM744 Linear Motor
Dunkermotoren XM744 Linear Motor
SKU:LIN-b0480a
High-speed and precision positioning linear motor with 744N peak force and 20A peak current. Ideal for industrial applications.
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
Dunkermotoren XM744 Linear Motor
$1,299.00
Quantity: 1
Claim Your Seller Account
Dunkermotoren XM744 Linear Motor
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

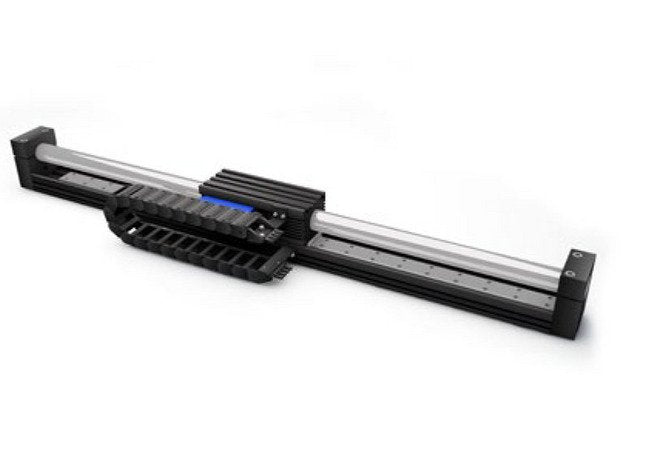

The Dunkermotoren XM744 Linear Motor is a high-performance servo module designed for precise and rapid positioning tasks with strokes up to 1323mm. Featuring a peak force of 744N and a peak current of 20A at 25°C ambient temperature, this linear motor offers superior controllability and accuracy. With integrated position sensing technology, low noise operation, and vibration resistance, it ensures reliable and efficient operation in industrial applications.
Product Specifications
Additional Information Additional Information
Incl. 3 m cable set and drag chainOptional limit switches | high. encoder system 1 μm
Features Features
Force modePrecise positioningLow noiseVibration resistance
Technical Specs Absolute Accuracy
0.4 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
2.28 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
120.1 N
Technical Specs Feedback Integrated
1 Vss | 1 µm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
5.9 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.
Technical Specs Note For Maximum Speed Sta
Without payload to the maximum stroke length (triangular motion).
Technical Specs Note For Peak Acceleration Sta
No playload.
Technical Specs Peak Acceleration Sta
243 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
744 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Repeatability
0.02 mm
