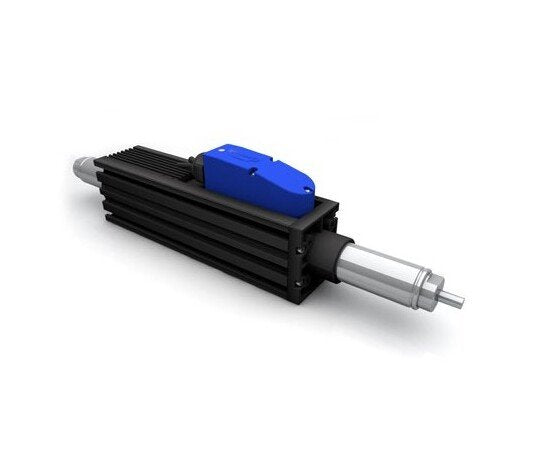

Dunkermotoren XT Series Linear Motor
Dunkermotoren XT Series Linear Motor
SKU:LIN-114398
High-performance Dunkermotoren XT Series Linear Motor for precise industrial automation. Peak force of 1116N, peak current of 20A, and IP67 protection.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dunkermotoren XT Series Linear Motor
$1,899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren XT Series Linear Motor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren XT Series 1116N Peak Force Linear Motor is a high-performance, precision-engineered solution for industrial automation. Featuring a peak force of 1116N and a peak current of 20A at 25°C ambient temperature, this motor ensures smooth, accurate motion control. With integrated high resolution sin/cos positioning sensors offering ± 25 micron repeatability, precise positioning is guaranteed. Maintaining high efficiency with 255W continuous power and IP67 protection, this motor is ideal for applications requiring low noise, high dynamic performance, and vibration resistance. Dunkermotoren's XT Series is designed for reliability, maintenance-free operation, and compliance with European Conformity (CE) standards.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
255 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
2.13 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
1682 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
78.9 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed Sta
3.8 m/s
Technical Specs Maximum Speed Stb
4.2 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 15%.
Technical Specs Note For Maximum Speed Sta
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Maximum Speed Stb
Based on a moving forcer with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration Sta
Based on a moving thrust rod with 33 mm stroke, no payload.
Technical Specs Note For Peak Acceleration Stb
Based on a moving forcer and no payload.
Technical Specs Peak Acceleration Sta
313 m/s²
Technical Specs Peak Acceleration Stb
276 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
1116 N
Technical Specs Peak Power
1860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP67)
Technical Specs Repeatability
25 µm
