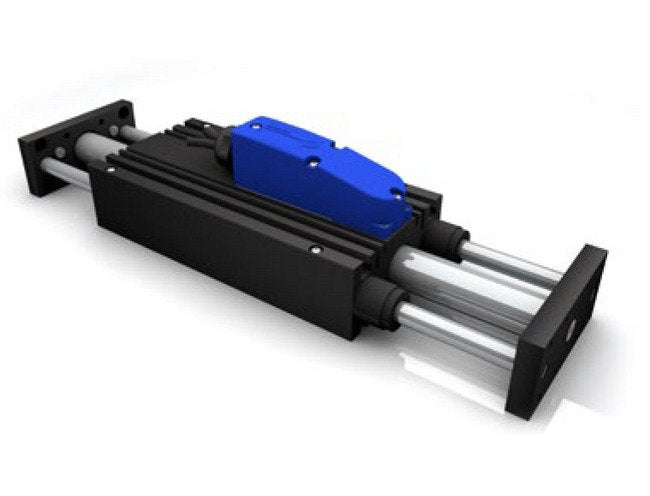

The Dunkermotoren XTR Series Linear Motor delivers precise positioning with high resolution sin/cos sensors, ensuring ± 12 micron repeatability and ± 350 micron absolute accuracy. With a peak force of 860N and 20A peak current at 25°C ambient temperature, this motor offers outstanding performance. Its IP67 protection, outrigger bearings for mechanical rigidity, and optional brake make it a reliable choice. Maintenance-free, low noise operation combined with compliance to European Conformity (CE) standards make it ideal for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
108 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.78 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
108.0 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
60.8 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
4.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration
Based on a moving thrust rod with 28 mm stroke, no payload.
Technical Specs Peak Acceleration
369 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
860 N
Technical Specs Peak Power
860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
12 µm
