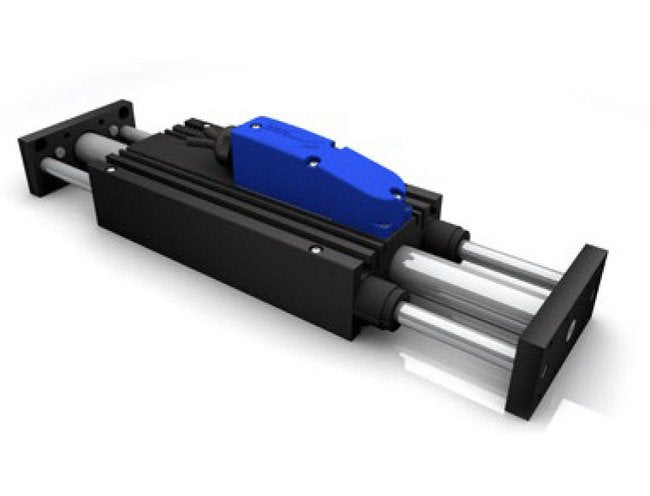

Dunkermotoren XTR Series 516N Linear Motor
Dunkermotoren XTR Series 516N Linear Motor
SKU:LIN-3c383a
Experience precision and power with the Dunkermotoren XTR Series 516N Linear Motor - ideal for demanding applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dunkermotoren XTR Series 516N Linear Motor
$499.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren XTR Series 516N Linear Motor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren XTR Series 516N Linear Motor is a precision-engineered solution offering high resolution sin/cos positioning, exceptional mechanical rigidity, and IP67 protection. With a peak force of 516N and peak current of 20A at 25°C ambient temperature, this motor ensures reliable performance under demanding conditions. It features force mode operation, precise positioning, low noise, high dynamic capabilities, and food-grade construction, making it ideal for a wide range of applications. With compliance to European Conformity (CE) standards, this motor meets stringent industry requirements for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
108 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.98 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
72.3 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
36.5 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
5.3 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration
Based on a moving thrust rod with 28 mm stroke, no payload.
Technical Specs Peak Acceleration
288 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
516 N
Technical Specs Peak Power
860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
12 µm
