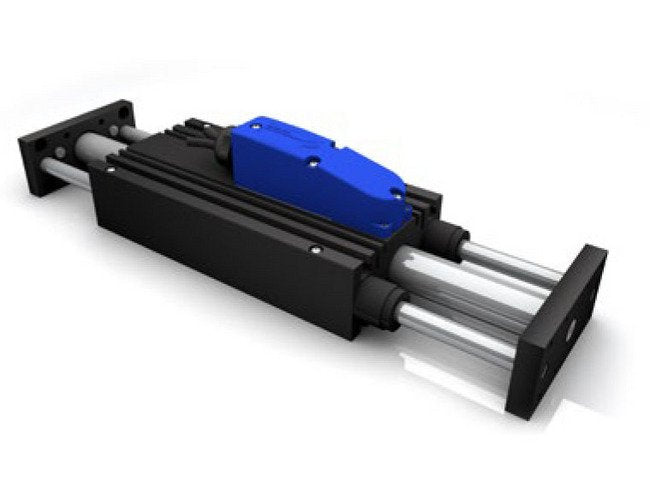

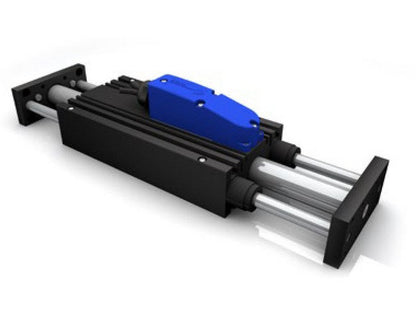

Dunkermotoren XTR Series Linear Motor
Dunkermotoren XTR Series Linear Motor
SKU:LIN-9e1d73
High-performance Dunkermotoren XTR Series Linear Motor for precise and reliable motion control in industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren XTR Series Linear Motor
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren XTR Series Linear Motor
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior precision and reliability with the Dunkermotoren XTR Series 688N Peak Force Linear Motor. This linear motor boasts a high-resolution sin/cos positioning sensor for exceptional repeatability and accuracy. With IP67 protection and outrigger bearings for mechanical rigidity, it ensures optimal performance in demanding applications. The optional brake feature further enhances control and safety.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh dynamicFood gradeVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
108 W
Technical Specs Continuous Root Mean Square Rms Stall Current At
1.86 A
Technical Specs Continuous Stall Force At 25 Degree Celsius C Am
90.4 N
Technical Specs Feedback Integrated
1 Vss
Technical Specs Force Constant Sine Commutation
48.6 rms
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Maximum Speed
4.8 m/s
Technical Specs Maximum Working Direct Current Dc Voltage
325 V
Technical Specs Note For Continuous Stall Current At 25 Degree C
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Force Constant Sine Commutation
By means of appropriate cooling plate or fan, the continuous force be increased by up to 20%.
Technical Specs Note For Maximum Speed
Based on a moving thrust rod with triangular move over maximum stroke, no payload.
Technical Specs Note For Peak Acceleration
Based on a moving thrust rod with 28 mm stroke, no payload.
Technical Specs Peak Acceleration
334 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Ambient Temp
20 A
Technical Specs Peak Force At 25 Degree Celsius C Ambient Temper
688 N
Technical Specs Peak Power
860 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Repeatability
12 µm
