Duo Check Valves, Cast Iron 200mm ANSI
Duo Check Valves, Cast Iron 200mm ANSI
SKU:VAL-a1b3c5
High-quality Duo Check Valves with Cast Iron body, Bronze disc, and NBR/Viton seat ring. Ideal for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Duo Check Valves, Cast Iron 200mm ANSI
$249.99
Quantity: 1
Claim Your Seller Account
Duo Check Valves, Cast Iron 200mm ANSI
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

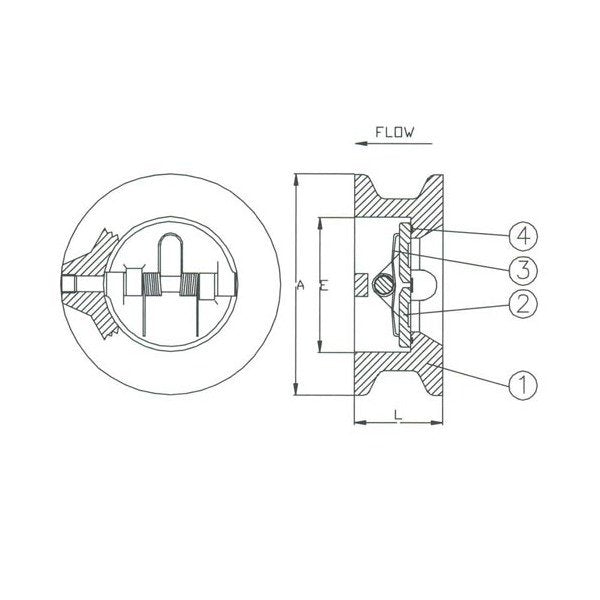

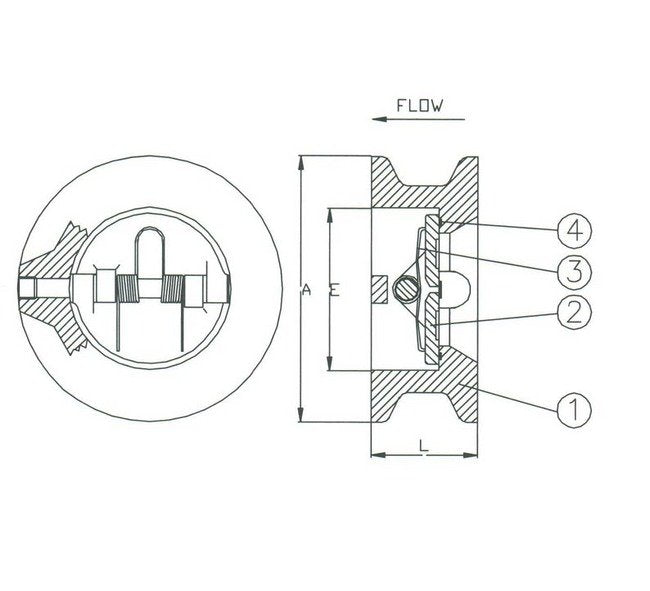

The Duo Check Valves, Cast Iron, are meticulously crafted with a Cast Iron body, Bronze disc, and NBR/Viton seat ring for optimal performance and durability. Equipped with a Stainless Steel spring, these valves ensure secure closure and minimal leakage. With precise dimensions of L: 89mm, A: 279mm, E: 209mm, and weighing 32.0 kg, these valves are ideal for industrial applications requiring reliable flow control. Compliant with ANSI Valve standards, these valves guarantee efficiency and longevity in demanding settings.
Product Specifications
Specifications A
279 mm
Specifications Actuators
Spring
Specifications Body Material
Cast Iron
Specifications Disc Material
Bronze
Specifications E
209 mm
Specifications L
89 mm
Specifications Seat Material
NBR
Specifications Size
200
Specifications Stem Material
Brass
Specifications Weight
32.0 kg
