Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

HIG-fbbdb7

Enhance sealing with Duolok 1 1/2 inch Bonded Washer: 316 SS, Viton O-ring. Reliable, durable, and corrosion-resistant for industrial use.

$14.99
$14.99
Sale

Initiate Order

Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

$14.99

Quantity: 1

Claim Your Seller Account

Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

Duolok 1 1/2 inch Bonded Washer, 316 SS with Viton O-ring

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your sealing solutions with the Duolok 1 1/2 inch Bonded Washer. Constructed from high-grade 316 stainless steel and featuring a Viton O-ring, this washer ensures reliable performance and resistance to corrosion. With precise dimensions and a sturdy design, it meets the demands of industrial applications. Perfect for instrumentation tube fittings, this washer guarantees a tight and durable seal, enhancing system efficiency and longevity. Trust in the quality and durability of Duolok for your critical sealing needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

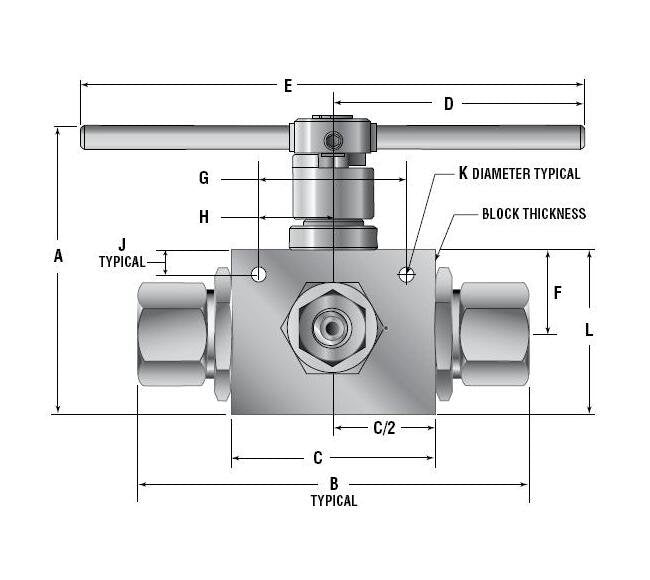

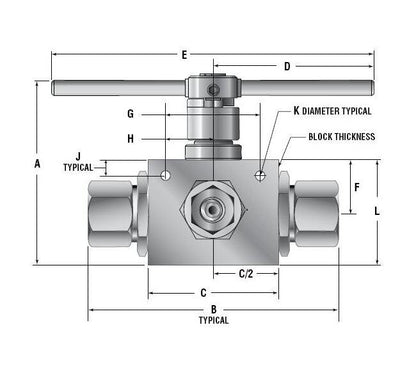

Product Specifications

Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
SF562CX20
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M9
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.312 in | 7.92 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add “R” to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
