Duolok 1 1/4 in. Tube Fitting Front Ferrules
Duolok 1 1/4 in. Tube Fitting Front Ferrules
SKU:SOU-3b92d4
Premium 1 1/4 in. Front Ferrules for secure and leak-free tube connections in instrumentation applications.
Regular price
$17.37
Regular price
Sale price
$17.37
Unit price
per
Initiate Order
Duolok 1 1/4 in. Tube Fitting Front Ferrules
$17.37
Quantity: 1
Claim Your Seller Account
Duolok 1 1/4 in. Tube Fitting Front Ferrules
$17.37
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 1 1/4 in. Tube Fitting Front Ferrules are precision-engineered from high-grade 316 stainless steel, ensuring exceptional durability and corrosion resistance in demanding industrial environments. Designed as Front Ferrules, they provide secure and leak-free connections in instrumentation applications. With a Fitting Size of 1 1/4 inches and part of the renowned Duolok series, these front ferrules guarantee reliable performance and easy installation, meeting the stringent standards of institutional and government procurement requirements.

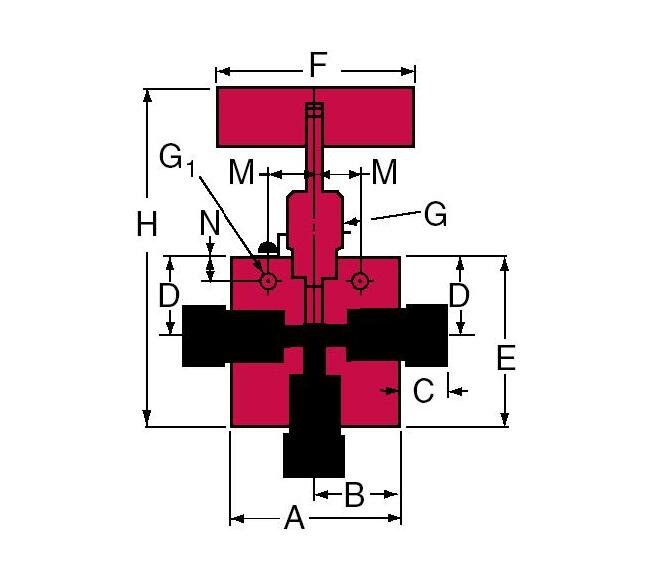

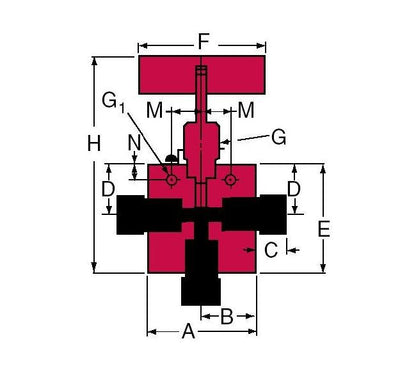

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.12 in | 130.05 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4001-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
