Duolok 1/16 in. Tube Fitting Front Ferrule
Duolok 1/16 in. Tube Fitting Front Ferrule
SKU:HIG-d91d45
High-quality brass Duolok front ferrule for secure 1/16 in. fitting connections. Ideal for instrumentation tube fittings.
Regular price
$1.28
Regular price
Sale price
$1.28
Unit price
per
Initiate Order
Duolok 1/16 in. Tube Fitting Front Ferrule
$1.28
Quantity: 1
Claim Your Seller Account
Duolok 1/16 in. Tube Fitting Front Ferrule
$1.28
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Duolok 1/16 in. Tube Fitting Front Ferrule is crafted from high-quality brass, ensuring durability and reliable performance in various industrial applications. Designed as a front ferrule, it guarantees a secure and leak-free connection with a 1/16 inch fitting size. The Duolok brand series signifies excellence and precision engineering, making it a trusted choice for instrumentation tube fittings. This front ferrule offers a cost-effective solution without compromising on quality or performance, meeting the stringent standards required by institutional and government buyers.
Product Specifications
Ae Relief Valves Features 0

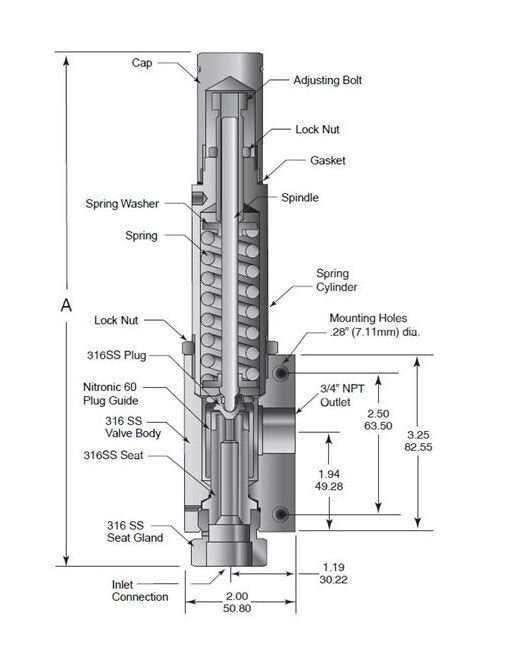

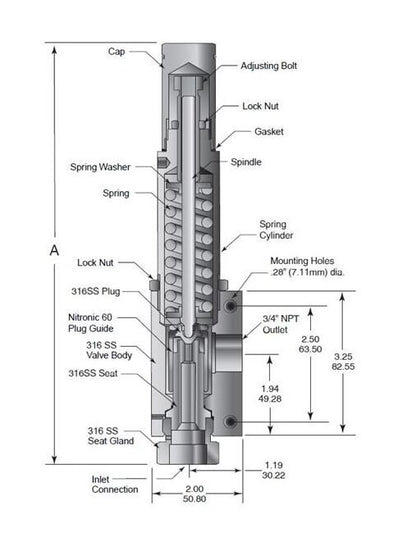

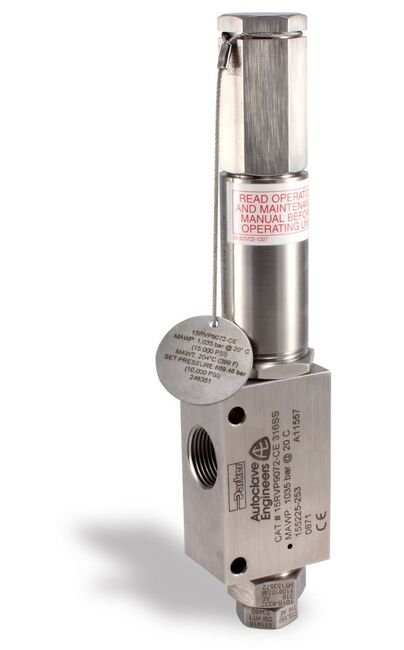

AE Relief Valves FeaturesMaterials: Standard models of Relief Valves are constructed of 316 stainless steel with selected componentsmade of anti-galling stainless steel material for optimum economy and ruggedness.Connections: All models except 30, 60, & 75 RVP series are designed with 9/16â Autoclave Medium Pressureinlet connections. The 30 & 60 RVP have 3/8â high pressure connection, while the 75 RVP has a5/16â high pressure connections. The outlet connection on all models is a female 3/4â NPT. While adaptersto other sizes and connection types are available, they must be sized for specific flow requirements. SeeAdapter section.Orifice Sizes: Orifice diameters range from .062 (1.57mm) to .312â (7.92mm).Full Lift for Full Flow: These relief valves are designed to open as a function of increasing systempressure. Proper spring selection assures repeatability of opening, full lift and flow, and reseat pressures.Reliability and Long Service Life: Materials engineering and stringent quality control procedures combineto assure the highest quality, reliability and service life. Each valve is preset and factory sealed to ensureproper valve operation.High Set Pressure Capability: Unique seat construction plus over-the-nozzle guiding and proper selection ofmaterials permits standard set pressures to 75,000 psi. (5171 bar)Dependable Shut-off: Series RVP relief valves are designed to provide shut-off of liquids and gases underpressure to commercial tightness standards.Fewer Parts, Ease of Maintenance: Engineered to perform with fewer basic components, both RVP andRVS valves facilitate minimum stocking of spare parts and ease of maintenance. The combined angle seat inthe RVP series eliminates the need for lapping in rework.Special Requirements: Most models available with CE Mark. SOG option available upon request.
Specifications A Height
9.40 in | 238.76 mm
Specifications Inlet Connection
SF562CX
Specifications Orifice Diameter
0.156 in | 3.96 mm
Specifications Outlet Connection Npt
3/4 in
Specifications Pressure Rating Psi Bar 100f 38c Maximum Back Pre
500 psi | 34.47 bar
Specifications Pressure Rating Psi Bar 100f 38c Maximum Setting
20000 psi | 1378.93 bar
Specifications Pressure Rating Psi Bar 100f 38c Minimum Setting
15000 psi | 1034.20 bar
Specifications Tubing Engagement Depth
0.81 in | 21.0 mm
