Duolok 1/2 in. Bonded Stainless Steel Washer with Viton O-Ring
Duolok 1/2 in. Bonded Stainless Steel Washer with Viton O-Ring
SKU:HIG-8d32d8
Enhance sealing performance with Duolok 1/2 in. Bonded Stainless Steel Washer featuring Viton O-Ring. Perfect for instrumentation tube fittings.
Regular price
$26.50
Regular price
Sale price
$26.50
Unit price
per
Initiate Order
Duolok 1/2 in. Bonded Stainless Steel Washer with Viton O-Ring
$26.50
Quantity: 1
Claim Your Seller Account
Duolok 1/2 in. Bonded Stainless Steel Washer with Viton O-Ring
$26.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your sealing applications with the Duolok 1/2 in. Bonded Washer crafted from high-grade 316 stainless steel, ensuring superior corrosion resistance. This washer features a durable Viton O-ring for exceptional sealing performance in demanding environments. The precision-engineered design guarantees a secure and leak-free connection, making it ideal for instrumentation tube fittings. Meet your sealing requirements with this premium Duolok washer that combines quality, reliability, and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

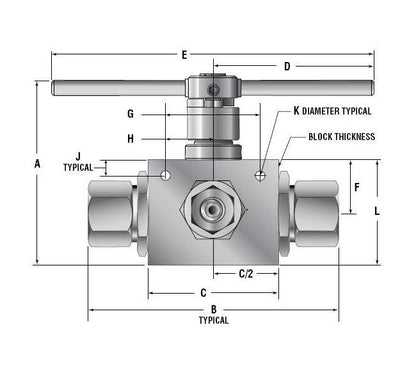

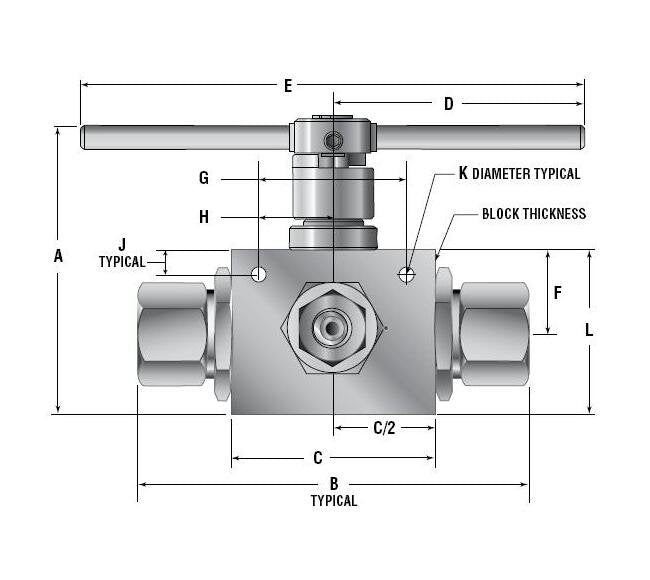

Specifications A Height
5.81 in | 147.57 mm
Specifications A Panel Mounting Dimension
2.63 in | 66.68 mm
Specifications Block Thickness
3.50 in | 88.90 mm
Specifications B Length
6.79 in | 172.47 mm
Specifications B Panel Mounting Dimension
1.31 in | 33.34 mm
Specifications Connection Type
SF375CX20
Specifications C Panel Mounting Dimension
1.88 in | 47.63 mm
Specifications C Width
3.50 in | 88.90 mm
Specifications D Length
5.13 in | 130.30 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M6
Specifications E Length
10.25 in | 260.35 mm
Specifications F Height
1.63 in | 41.40 mm
Specifications G Spacing Of Holes
2.63 in | 66.80 mm
Specifications H Dimension
1.31 in | 33.27 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.97 in | 75.44 mm
Specifications Mawp At Room Temperature
10000 psi | 690 bar
Specifications Minimum Orifice
0.203 in | 5.16 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 (5 for switching) numbers for proper repair kit. (Example: R4B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 120 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) Note: Consult factory for additional actuator information. High Temperature Option: HT - for media temperature up to 500°F (260°C)
