Duolok 1/2 in. Brass Front Ferrule Tube Fitting
Duolok 1/2 in. Brass Front Ferrule Tube Fitting
SKU:HIG-209c00
Upgrade your fluid systems with the Duolok 1/2 in. Brass Front Ferrule Tube Fitting for secure, leak-free connections.
Regular price
$1.17
Regular price
Sale price
$1.17
Unit price
per
Initiate Order
Duolok 1/2 in. Brass Front Ferrule Tube Fitting
$1.17
Quantity: 1
Claim Your Seller Account
Duolok 1/2 in. Brass Front Ferrule Tube Fitting
$1.17
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with the Duolok 1/2 in. Brass Front Ferrule Tube Fitting. Crafted from high-quality brass, this front ferrule ensures a secure and leak-free connection in instrumentation tube fittings. With a fitting size of 1/2 inch, it is part of the Duolok series known for reliability and durability. Precision engineering and a competitive price make it ideal for a wide range of applications in industrial settings.

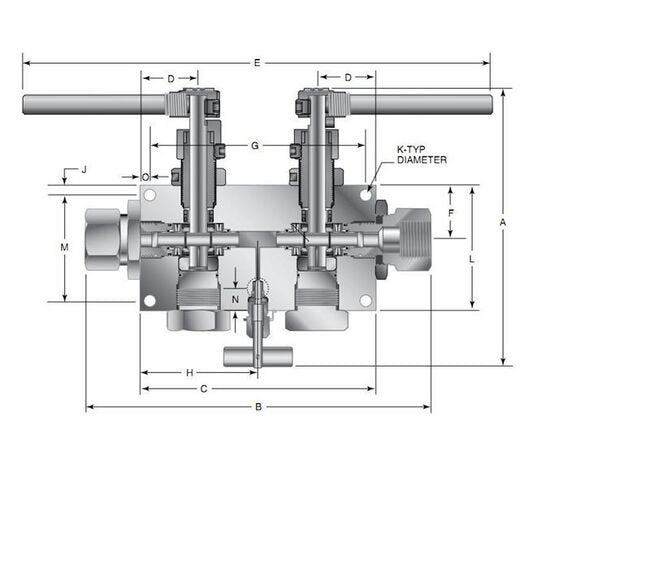

Product Specifications
Specifications A Height
7.14 in | 181.36 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
8.81 in | 223.77 mm
Specifications Connection Type
1/4 NPT
Specifications C Width
6.00 in | 152.40 mm
Specifications D Length
1.5 in | 38.1 mm
Specifications End Connection Number
P4
Specifications E Length
12.94 in | 328.68 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
5.00 in | 127.00 mm
Specifications H Dimension
3 in | 76.20 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
3.19 in | 81.03 mm
Specifications Mawp At Room Temperature
15000 psi | 1034 bar
Specifications Minimum Orifice
0.328 in | 8.33 mm
Specifications M Height
2.38 in | 60.45 mm
Specifications N Length
0.65 in | 16.51 mm
Specifications O Dimension
0.5 in | 12.70 mm
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Specifications Vent Connection
1/4 NPT
Specifications Vent Connection Number
P4
Valve Maintenance 0
Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve options/details for full description, connection details and high temperature options. For material options consult factory.
